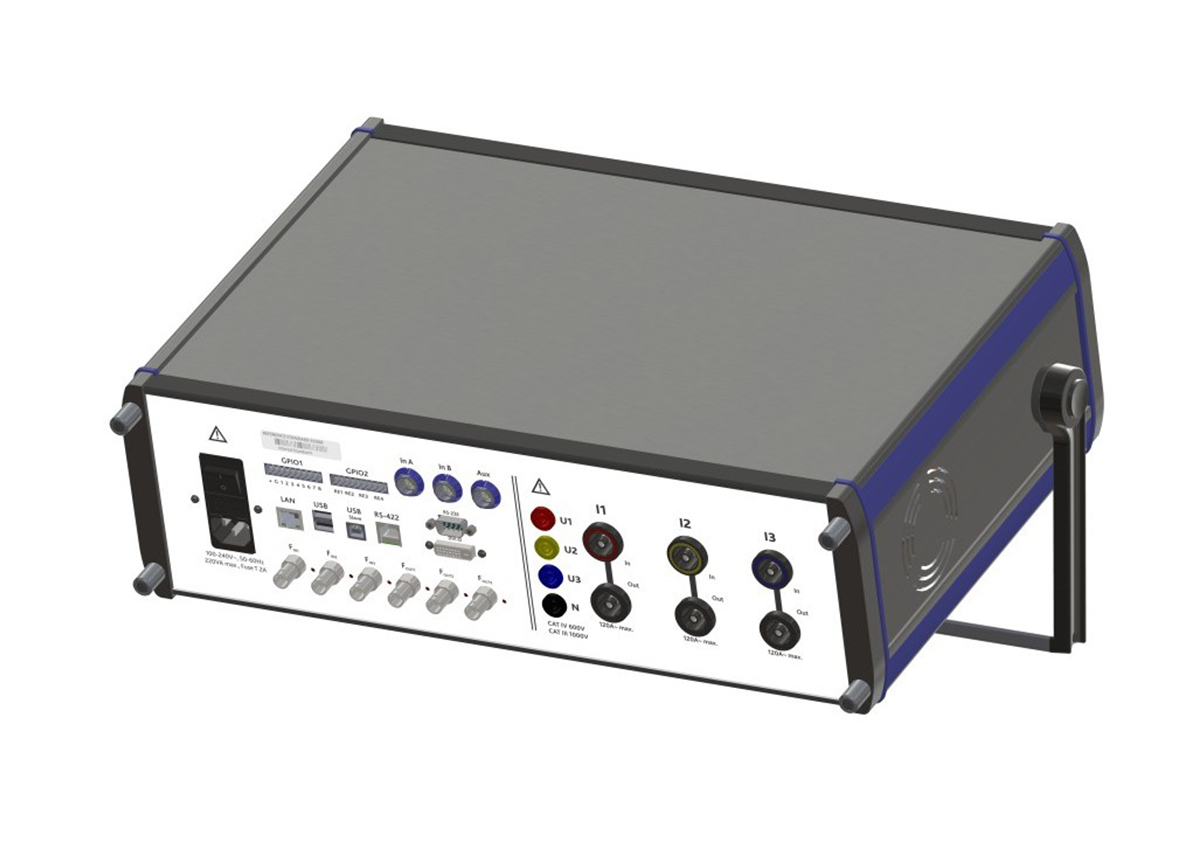

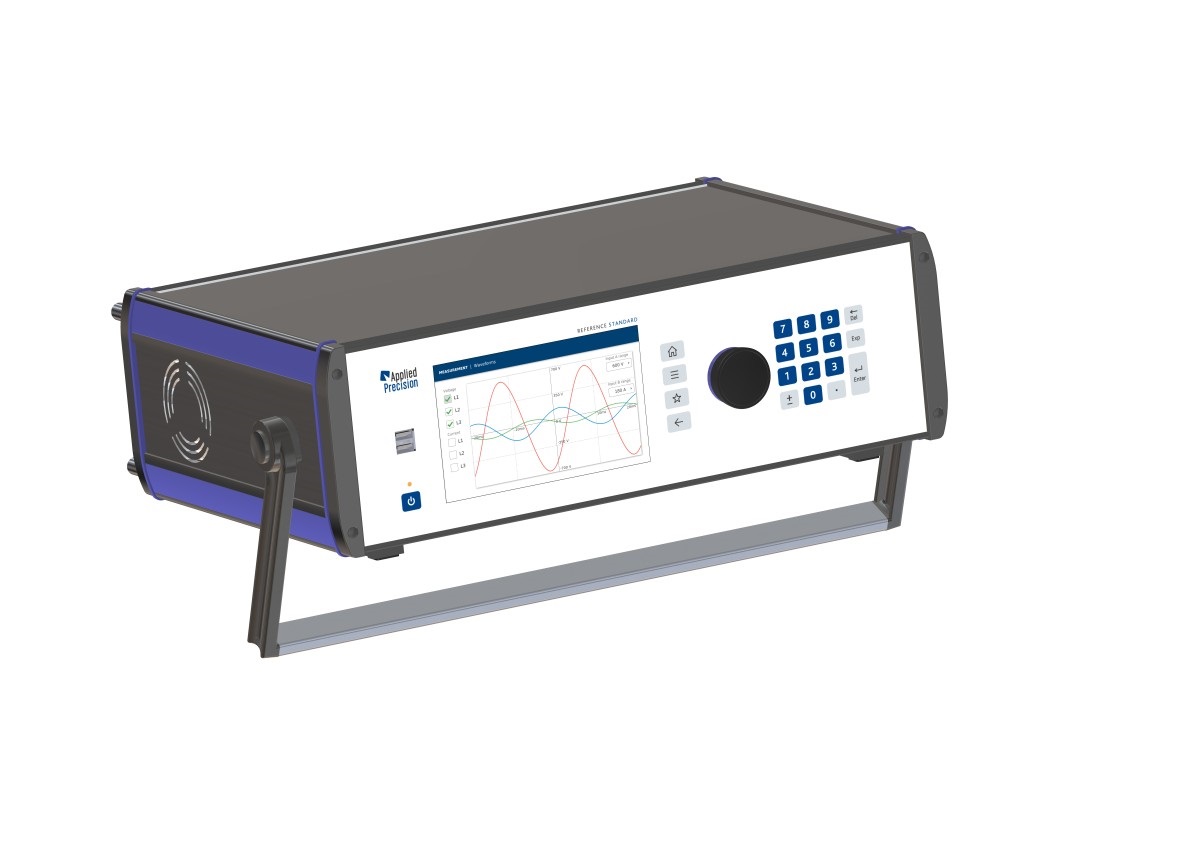

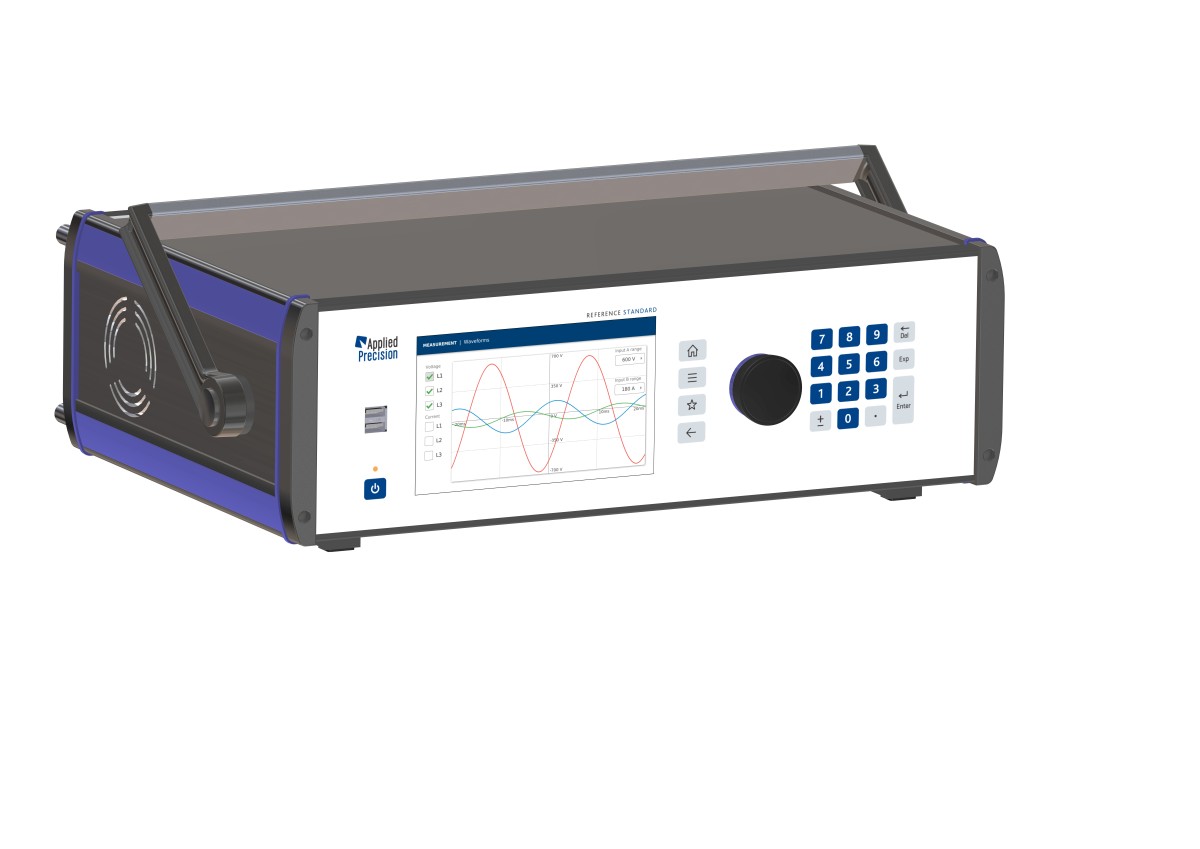

Reference Standard RS 3330

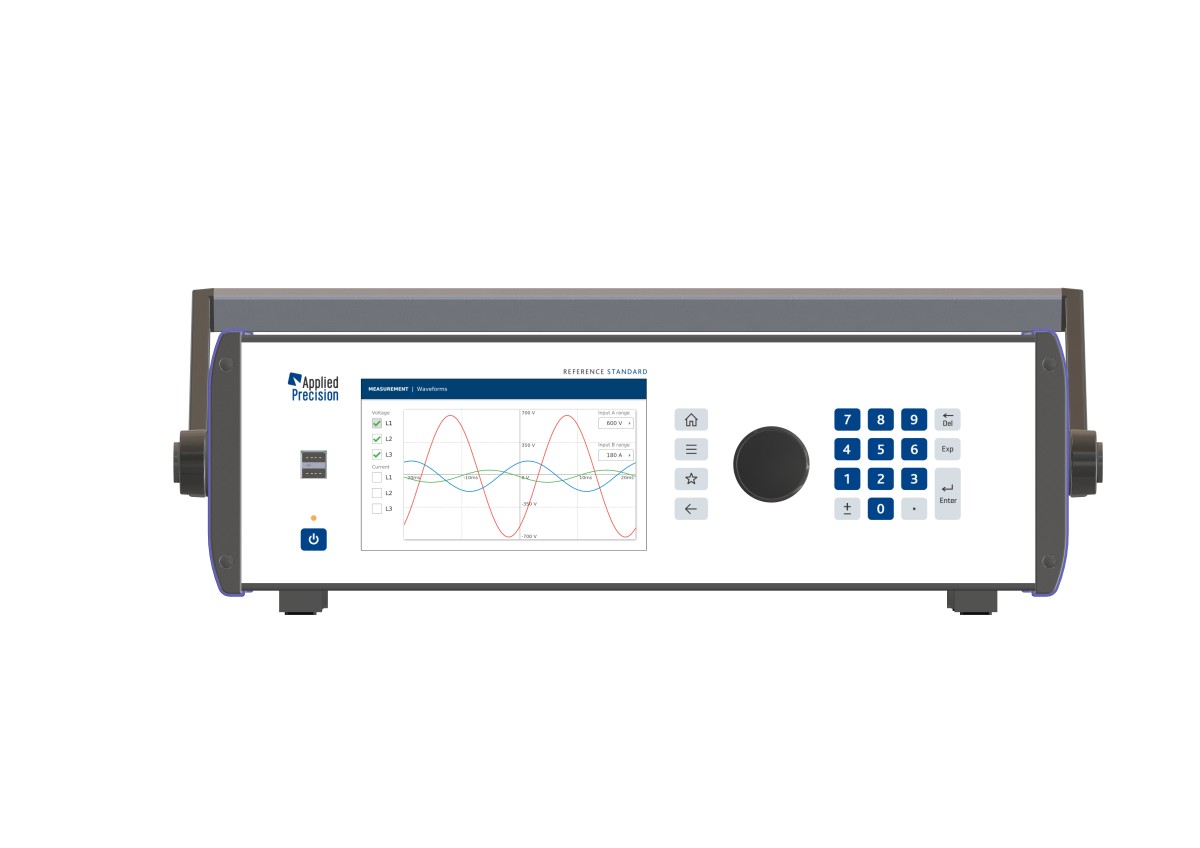

7” Colour Multi-Touch Screen

Highest accuracy 0.01 % (optionally up to 0.005 %)

Wide measuring range 0.1 mA to 120 A and 0.1 V to 600 V

Extreme bandwidth 10 kHz and sampling rate 24-bit 125 000 samples/second

Harmonics and interharmonics up to 200th harmonic (digital processing up to 1024th harmonic)

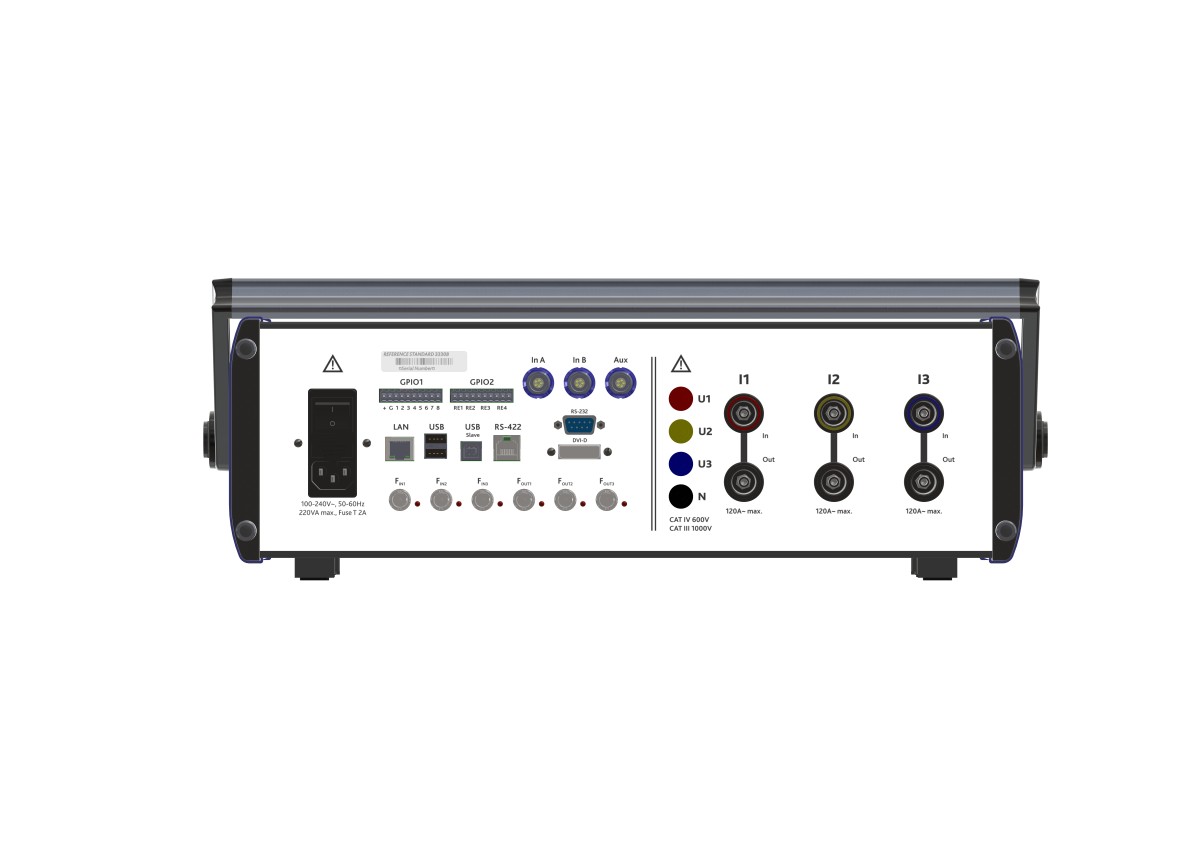

Current and voltage inputs designed for safety category CAT IV 300 V / CAT III 600 V

Digital inputs for external smart voltage and current sensors (inclusive high current AC and DC sensors)

Four independent impulse inputs

Four independent fully programmable impulse outputs assignable to selected quantities

Programmable constant of the impulse outputs up to 4 MHz

Ethernet networking for worldwide remote control and data exchange
